MTU 956/1163 Parts | 111D03014/1 | SEALING RING

111D03014/1 SEALING RING

Other
Other X58799102324/N00 SAFETY VALVE 8492500001 COUPLING X58720700002 COOLANT PUMP SHAFT 5841800143 OIL SPRAY NOZZLE XP58799100596 SEAL 0000911128 DIAPHRAGM X59699100286 PRESSURE SPRING X59699100285 PRESSURE SPRING X54514100028 DIAPHRAGM X58712500010 BLEED VALVE 0005342732 VALVE BLOCK ELECTRIC 5840780024 THRUST MEMBER 5840782802 SUPPLY PIPE 007603016105 COPPER SEALING RING 000910016002 PLUG 000931012156 HEX SCREW 5802040290 RETAINER 000934012008 NUT HEX 000137012202 WASHER SPRING B12 5802040801 SPIRAL HOUSING 000137010202 WASHER SPRING B10 000933010093 HEX SCREW 700429045000 O-RING 5802040072 NUT 0002041116 ROTARY SEAL 5802040806 IMPELLER 700429178000 O-RING 700429100000 O-RING 5842040257 SEAL CARRIER 5842040219 BEARING HOUSING 5849900851 NUT 205412223002 CYL. ROLLER BEARING 5769970119 GRUB SCREW X58720700011 GEAR NO. 11 5900530426 VALVE COLLET 5841400344 FLANGE 5841421257 SEALING RING 5840530229 VALVE GUIDE INLET, SIZE 1 5840530129 VALVE GUIDE INLET, SIZE 0 8495340000 SOLENOID VALVE 5840300615 PISTON SKIRT 8490740063 FLANGE 0020940204 FILTER CARTRIDGE XT5610100140 PISTON RING F/TURBOCHARGER 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420154 CABLE CONDUIT 5841420445 CLAMP X00E50214448 ACTUATOR 5840940180 GASKET 0180944502 PREFILTER 5840371625 PISTON CROWN 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 5849932001 LEAF SPRING 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5841420857 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 111D03014/1
ENGINE TYPE MTU 1163 ENGINE
DESCRIPTION SEALING RING
DIMENSIONS N/A
UNIT WEIGHT 0.008 KG
HS CODE 40169300
NATO-VERS.-NR. 5330661411657
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 111D03014/1 LOW-PRESS FUEL SYS SEALING RING

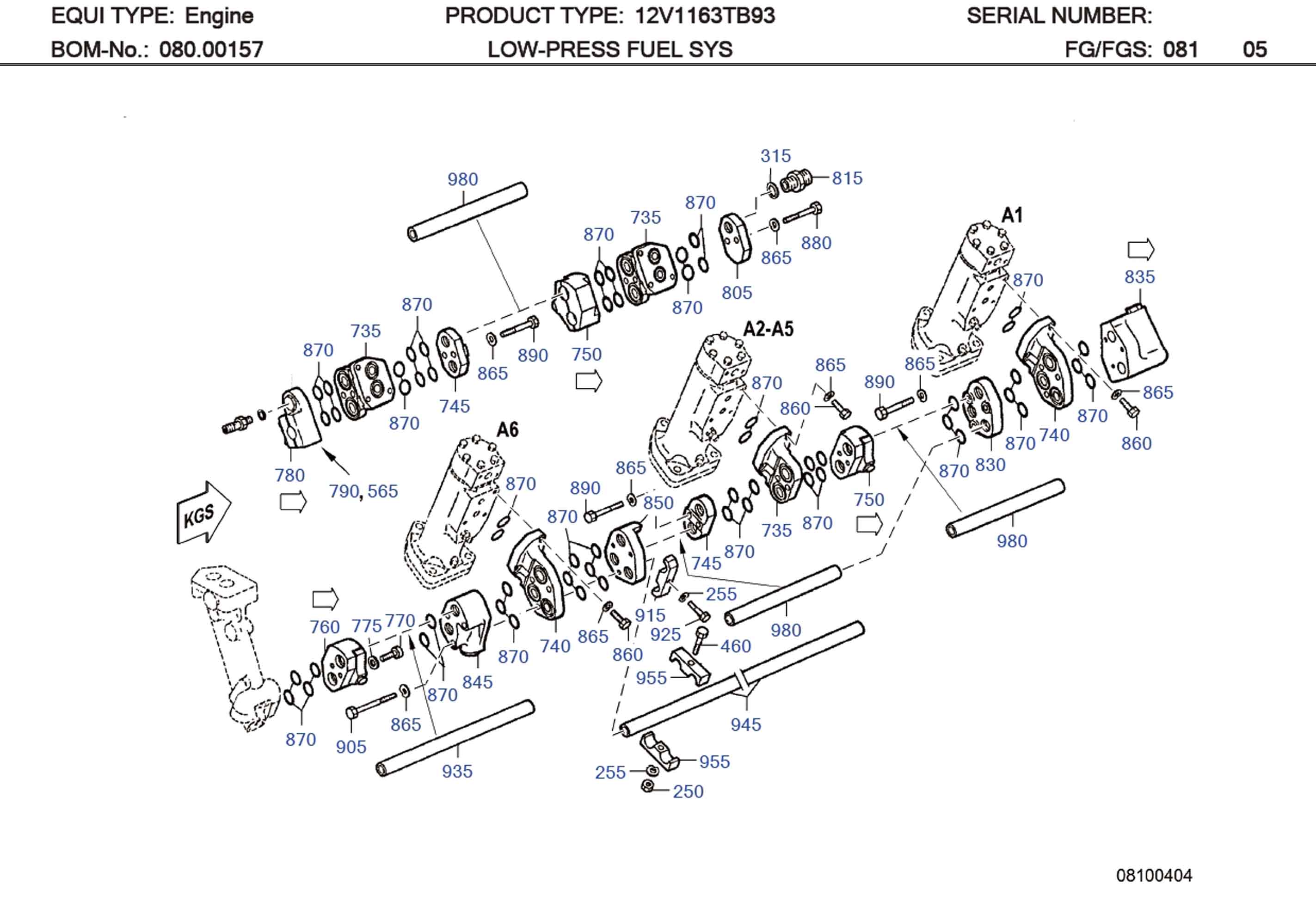

MTU 111D03014/1 Technical Engineering Exploded View

MTU 111D03014/1 LOW-PRESS FUEL SYS SEALING RING

C/N Description Part-Number Qty
25 FUEL LINE 5840707135 001
35 PLUG 000908018002 001
40 COPPER SEALING RING 007603018101 001
60 PIPE ELBOW 700160000040 001
65 SEALING CONE 735189042000 001
70 NUT 40 M52X1.5 BL.GEOELT 915001040002 001
80 GASKET 5840780380 001
85 BOLT HEX 000933012054 004
90 WASHER SPRING B12 000137012202 004
100 RETAINER 5842035040 001
105 CLAMP HALF TUBE 1/2 D9-42 700325042100 002
110 BOLT HEX 000931008173 002
115 NUT HEX 000934008008 002
120 WASHER 000125008427 002
130 RETAINER 5800701140 001
135 RETAINER 5840780541 001
145 BOLT HEX 000933008114 002
155 WASHER SPRING B8 000137008203 002
170 BOLT HEX 000931008241 001
185 CLAMP HALF TUBE 1/1 D9-15 700325015100 002
190 GROMMET 700327010000 001
195 BOLT HEX 304017008087 001
215 CLAMP HALF TUBE 1/2 D9-28 700325028101 002
220 BOLT HEX A3C 304017008089 002
235 FUEL DELIVERY PUMP 0030913601 001
245 GASKET 5841810780 001
250 NUT HEX 000934010005 004
255 WASHER SPRING B10 000137010202 004
265 FLANGE 5840780244 001
275 BOLT HEX 000933012056 004
290 HAND PUMP 5840900150 001
300 GASKET 5840910480 001
305 VALVE HOUSING 5840904354 001
310 UNION 915013025001 001
315 COPPER SEALING RING 007603030101 001
325 STUD 000939008102 004
350 SHAFT 5841810205 001
355 FUEL FILTER 0010920701 001
370 HEX SCREW 000931010323 002
375 SPACER S2000/4000 735151010200 002
380 BOLT HEX 000931010332 001
385 THRUST WASHER 8381880076 001
400 FUEL LINE 5820700235 001
410 THREAD PLUG 000908012003 001
415 COPPER SEALING RING 007603012111 001
425 FUEL LINE 5820701335 001
430 O-RING 700429021000 002
435 FUEL LINE 5820701435 001
445 PIPE CLAMP HALF 700325028105 008
450 GROMMET 700327022000 004
460 BOLT HEX 000933010095 002
465 BOLT HEX 000933010149 001
470 BOLT HEX 000933010192 001
485 BRACKET DEG X 28.5 5531870040 001
490 HEX SCREW 000933010106 001
510 WASHER 007349008002 001
520 NUT HEX 000934010007 001
530 LINK LEFT SIDE 5840782047 001
550 SCREW-FITTING UNION 8359970572 001
555 COPPER SEALING RING 007603022102 001
560 SCREW NECK 915013008002 001
565 COPPER SEALING RING 007603014102 001
580 SEALING RING 111D03014/1 002
585 RING SEALING 5849970440 001
595 BOLT HEX 000933010144 004
605 PLUG 000910027000 001
610 WASHER A COP 007603027100 001
615 PLUG 000908022001 001
640 FUEL LINE 5840705035 001
660 BOLT HEX A3C 304017008084 001
670 UNION 915013006002 001
680 FUEL LINE 5820701235 001
690 CLAMP HALF TUBE 1/1 D9-12 700325012100 004
695 GROMMET 700327008000 002
705 CLAMP HALF TUBE 1/1 D11-15 700325015110 002
720 CONNECTOR 10/8 915007010001 001
735 LINK 5840782647 010
740 LINK 5840782347 002
745 FLANGE 5840780444 009
750 FLANGE 5840700789 010
760 FLANGE 5840700889 001
770 BOLT HEX SOC HD 000912010065 002
775 WASHER 700521010100 002
780 FLANGE 5820700089 001
790 THREAD PLUG 000908014001 002
805 FLANGE 5840781144 001
815 ADAPTOR 735070025000 001
830 FLANGE 5840780744 001
835 CONNECTING FLANGE 5840700389 001
845 CONNECTING FLANGE 5840700489 001
850 FLANGE 5840700589 001
860 BOLT HEX S2000/4000 000933010180 036
865 WASHER 000125010524 036
870 O-RING 700429028002 024
880 BOLT HEX 000931010230 002
890 BOLT HEX 000931010283 019
905 BOLT HEX 000931010292 003
915 PIPE HALF-CLAMP 5849950868 001
925 BOLT HEX 000933010094 001
935 PIPE 5840783502 002
945 PIPE 5820780202 001
955 PIPE HALF CLAMP 700325028106 004
980 PIPE 5840783702 020

111D03014/1 SUPERSEDED PART AND EFFECTIVE DATE

111D03014/1 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 111D03014/1 5840780280 N/A
02 111D03014/1 8200150060 1994/03/01
03 111D03014/1 111D03014/1 1994/04/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
