MTU Specialized Tools 505890921/00 COMPRESSION PRESS RE CORDER

505890921/00 COMPRESSION PRESS RE CORDER

Other
Other F30453006 TOOL KIT F30452578 SLOTTED NUT DRIVER F6794703 FITTING/REMOVAL DEV. F30452562 TOOL KIT F30452739 MILLING CUTTER F30006212 RATCHET WITH EXTENSI ON F30378324 SETTING MANDREL Y20098771 FEELER GAUGE F30379104 OIL FITER WRENCH F6780562 PULLER F6780561 PULLER F6781539 HYDRAULIC PRESSURE SPINDLE T80090944 BRACKET F6801820 BARRING GEAR F6789889 FITTING/REMOVAL DEVICE F6792918 BARRING TOOL F6558557 BARRING DEVICE
PART NUMBER 505890921/00
ENGINE TYPE BR2000 PLD
DESCRIPTION COMPRESSION PRESS RE CORDER
UNIT WEIGHT 2.000 KG
HS CODE 90262080
NATO-VERS.-NR. 4910123077731
LEVEL TOOL WORKSHOP GENERAL
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Tools details
  • Original tools

MTU TOOLS 505890921/00 COMPRESSION PRESS RE CORDER

MTU SPECIALIZED TOOLS 505890921/00 COMPRESSION PRESS RE CORDER

MTU TOOLS 505890921/00 COMPRESSION PRESS RE CORDER

C/N Description ORDER NO. Qty
01 COMPRESSION PRESS RE CORDER 505890921/00 001
02 RECORDER SHEETS (IN PACK OF 100 PCS) 5505890921/06 001
03 CONNECTING PIECE Y4349984 001
04 PRESSURE LINE 5605891461/00 001
05 NOZZLE TESTING UNIT 8205892521/00 001
06 FUEL TANK 8205895163/01 001
07 BEAKER COVER 8205895163/02 001
08 FILTER COMPLETE 8205895163/04 001
09 PRESS.GAUGE 0001530125/00 001
10 HIGH-PRESSURE HOSE B80146891 001
11 HAND PUMP B80146898 001
12 SWIVEL STAND F6787914 001
13 SWIVEL STAND F6787912 001
14 FRAME F6787913 001
15 BEARING PEDESTAL F6798599 001
16 MOUNT F6787916 001
17 MOUNT F6788555 001
18 SUPPORT F6789423 001
19 ENGINE BRACKET T5500024026 001
20 HOIST T80090170 001
21 HOOK CHAINE T80091022 001
22 LIFTING BRACKET T80091190 001
23 LIFT HANDLE T80091765 001

505890921/00 SUPERSEDED PART AND EFFECTIVE DATE

505890921/00 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 505890921/00 J-6692-B N/A
02 505890921/00 0005896921/00 2003/03/01
03 505890921/00 Y20097344 2003/04/01
04 505890921/00 0015891021/00 2003/05/01
05 505890921/00 0015890421/00 2003/06/01
06 505890921/00 5505890921/00 2003/07/01

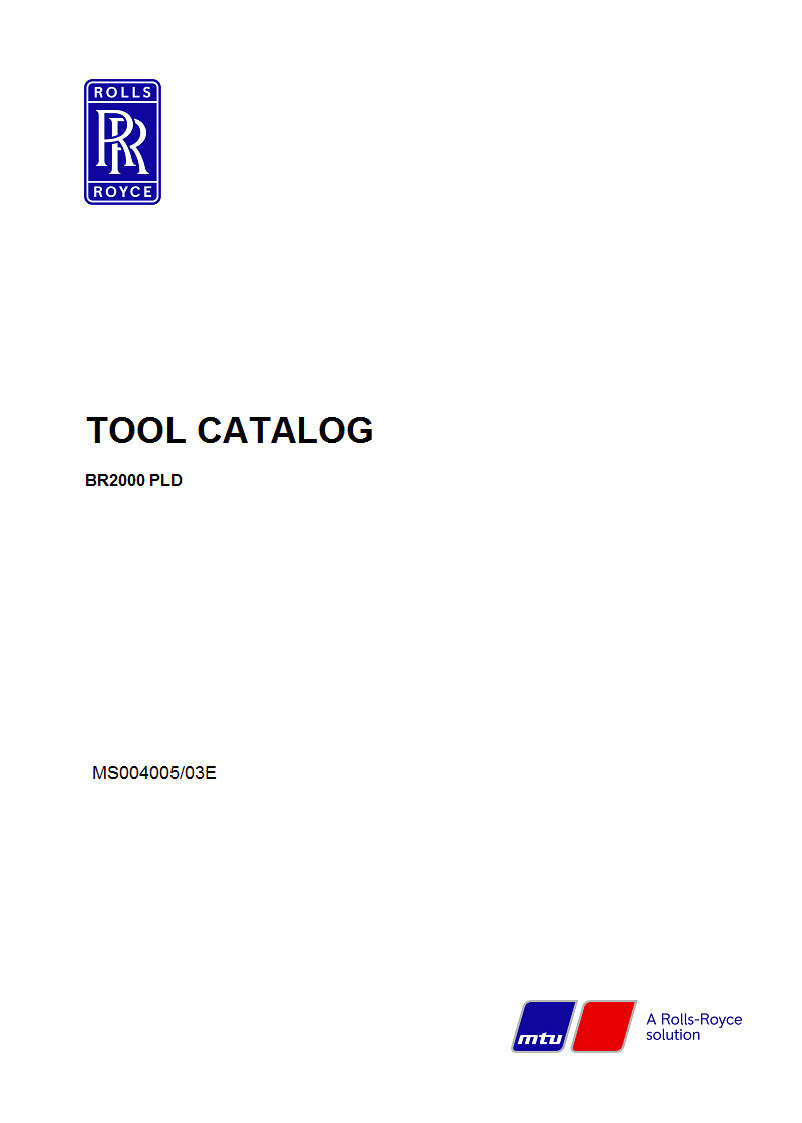

MTU BR2000 PLD SPECIAL TOOLS FOR MAINTENANCE

MTU BR4000-03 Special tools for maintenance

MTU BR2000 PLD SPECIAL TOOLS FOR MAINTENANCE

ORDER NO. DESIGNATION USAGE QTY.
F30039534 BOX WRENCH BIT 14mm for valve bridge 001
F30453020 EXTENSION 460 mm 001
F6797387 ADAPTER to remove nozzle M24x1.5 to M8 male thread 001
F30452510 TOOL KIT 6-19A/F, 3/8" square 001
F30455924 OIL FILTER WRENCH 60 to 160mm 001
F6802848 BARRING GEAR N/A 001
F6799543 BARRING GEAR N/A 001
5360300074 FLANGE for 16V C&I engine plus: Wrench Socket 32 A/F F30006125 and Ratchet 3/4" F30006212 001
F30006125 SOCKET 32 MM A F 32A/F, 3/4" to bar the engine, S2000 unit pumps 001
F30006212 RATCHET WITH EXTENSI ON 3/4" with extension 001
F30004976 WRENCH SOCKET 27 A/F, 3/4", square 001
F6557971 BARRING DEVICE for 12V C&I Engine plus: Wrench Socket 27 A/F F30004976 and Ratchet 3/4" F30006212 001
F6558556 BARRING DEVICE for 12V genset engine plus: Wrench Socket 30 A/F F30004977 and Ratchet 3/4" F30006212 001
F6558557 BARRING DEVICE for 16/18V G02 genset engine plus: Wrench Socket 30A/F F30004977 and Ratchet 3/4" F30006212 001
5415890021/00 SURFACE PLATE Measuring plate for cylinder line protrusion 001
0005891853/00 REAMER Adjustable 13,5mm-15,5mm for bore in cylinder head for valve guide 001
3435890040/00 BRACKET dial-gauge holder 001
4425890031/00 VALVE COMPRESSOR to press on valves in order to remove valve collects 001
F30377657 SOCKET for cylinder head protective sleeve 001
F30377883 DRIFT for valve stem seal 001
F30377930 EXPANDER Spreader for valve stem seal 001
F30378878 PUNCH for end cover in cylinder head 001
F30378880 INSTALLATION MANDREL for valve seat insert inlet 001
F30378881 INSTALLATION MANDREL for valve seat insert exhaust 001
