MTU 538 ENGINE PARTS | 514D19001/1 | GASKET

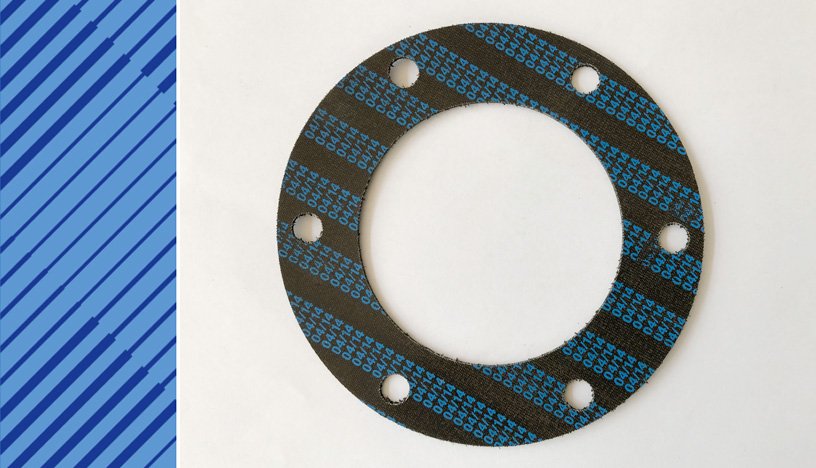

514D19001/1 GASKET

Other

Other 5602030680 GASKET 135L45018/1 SLOTTED NUT 8352010073 TAB WASHER 5602011280 GASKET 5602011380 GASKET 5602030380 GASKET 5602011480 GASKET 5602010980 GASKET 135L35003/1 BUSHING 5602010880 GASKET 700217040001 SHAFT SEAL RING 5602011880 GASKET 135D01012/1 RUBBER GROMMET 000N13235/1 GASKET 700327012000 GROMMET 735038008106 RUBBER HOSE 135D11006/1 RUBBER SEAL 700327015000 GROMMET 000N33715/1 DELIVERY VALVE 000N33714/1 VALVE 5600740280 GASKET 135D11005/1 SEALING RING 135D11003/1 SEALING RING 5600980180 GASKET 5600980380 GASKET 806B01035/2 SPACER RING 806A23001/1 LOCKING PLATE 135D08007/1 SEALING RING 5600510580 GASKET 5600513780 GASKET 5600513580 GASKET 5600513680 GASKET 5600510080 GASKET 5600512280 GASKET 5600520080 GASKET 5600160280 GASKET 5600180080 GASKET 5030210580 GASKET 806A06020/1 SEALING RING 5601420084 SHIM 5611420680 GASKET 5600160180 GASKET 5600160071 PLUG 000N33730/1 STRAINER FILTER 999900010000 RIVET NUT 700292013000 TAB WASHER 700368035002 RUBBER SLEEVE 700368090002 SLEEVE RUBBER 135C04501/2 CONNECTING PIECE X58708300028 FUEL FILTER ELEMENT 000N33726/1 NOZZLE ELEMENT 135B09041/3 CONROD 135D17033/1 TAPPET 135C05716/1 WASHER 135B03062/2 WASHER 135B03020/2 TAB WASHER 135C10002/1 VALVE SPRING INNER 135B03090/1 OIL SEAL 135B14008/1 SCREW 135C01013/1 COLLARED BUSHING 135L35037/1 STANDPIPE 135D19004/3 BEARING BUSHING 135C10017/5 GUIDE SLEEVE 5610380850 CONROD BUSHING SIZE 0 5610381150 CONROD BUSHING SIZE 3 5610380950 CONROD BUSHING SIZE 1 135C01007/1 COLLARED BUSHING 135C01006/1 SLOTTED NUT 135C01010/1 SPACER BUSHING 135C10020/2 VALVE HEAD INLET 135C10143/3 VALVE HEAD 135B09742/5 CONROD BEARING 5600550070 THREADED RING 135D17708/5 HYD LASH ADJUSTER 5610105420 CYLINDER HEAD 5600170509 BURNER 5600100083 SCREW 5619810086 ROLLER SIZE 0

PART NUMBER	514D19001/1
ENGINE TYPE	MTU 538 ENGINE
DESCRIPTION	GASKET
DIMENSIONS	N/A
UNIT WEIGHT	0.003 KG
HS CODE	40169300
NATO-VERS.-NR.	5330121324659

Part details
original parts

MTU 538 ENGINE SPARE PARTS 514D19001/1 GASKET

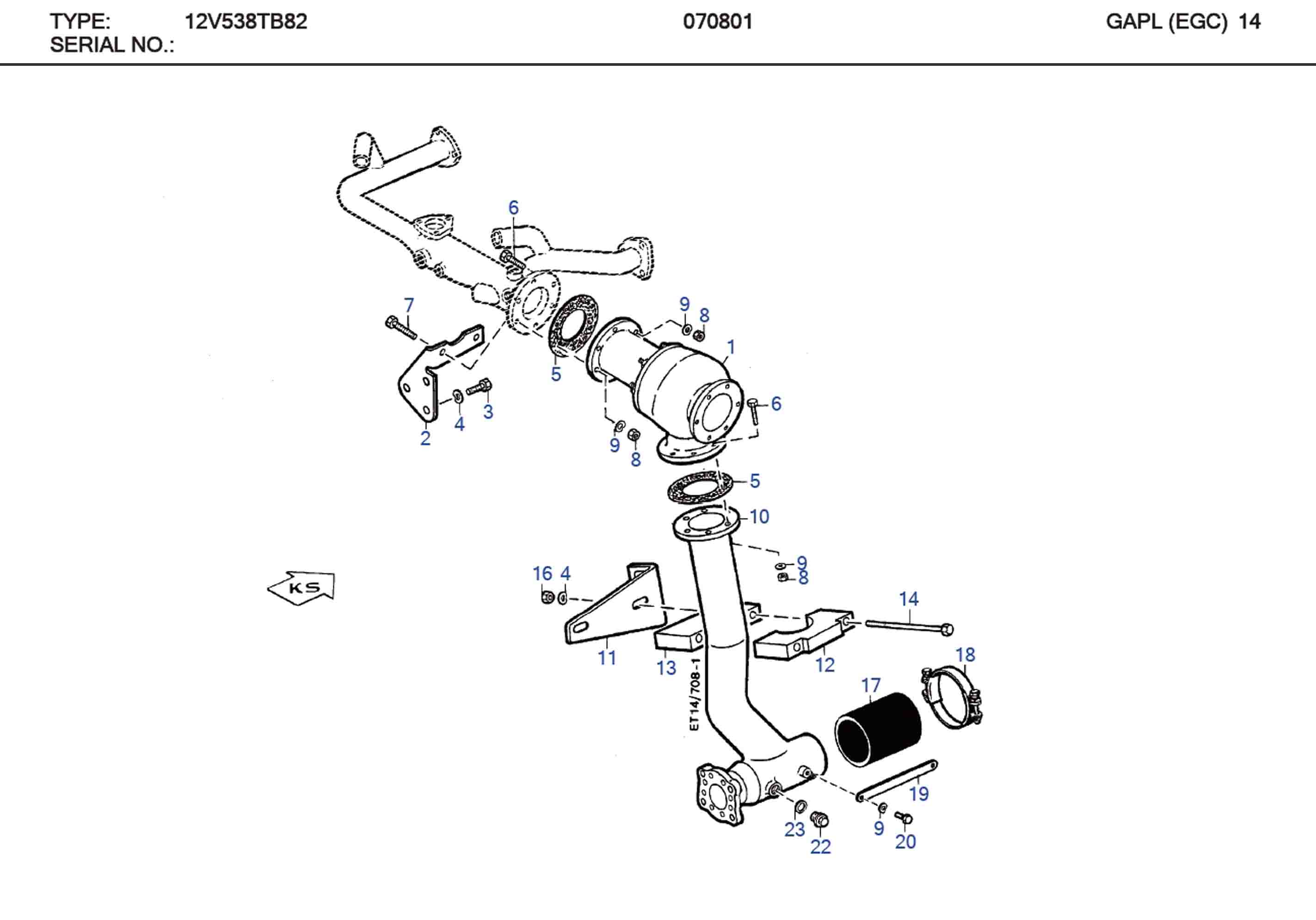

MTU 514D19001/1 Technical Engineering Exploded View

MTU 538 ENGINE SPARE PARTS 514D19001/1 GASKET

C/N	Description	Part-Number	Qty
01	COOLANT THERMOSTAT	0022039275	001
02	BRACKET	535D03002/1	001
03	SCREW	000931008058	004
04	SPRING WASHER	000137008203	006
05	GASKET	514D19001/1	002
06	SCREW	000933010094	010
07	SCREW	000933010116	002
08	HEX NUT	000934010005	012
09	SPRING WASHER	000137010202	014
10	BYPASS LINE	535D20701/2	001
11	ALARM SWITCH	5602030440	001
12	PIPE HALF-CLAMP	700346090100	001
13	PIPE HALF-CLAMP	700346090200	001
14	SCREW	000931008137	002
16	HEX NUT	000934008008	002
17	RUBBER SLEEVE	700368110002	001
18	CLAMP	900288126001	002
19	LINK	136M37009/1	001
20	SCREW	000933010198	002
22	PLUG	000910016001	001
23	SEALING RING	007603016105	001

514D19001/1 SUPERSEDED PART AND EFFECTIVE DATE

514D19001/1 SUPERSEDED PART AND EFFECTIVE DATE

C/N	New Part Number	Superseded Part Number	Valid From Date
01	514D19001/1	536D13020/1	N/A
02	514D19001/1	536D15007/1	1987/04/01
03	514D19001/1	28392030580/0	1987/05/01
04	514D19001/1	000N02090/1	1987/06/01
05	514D19001/1	514D19001/1	1987/07/01

MTU 538 Diesel Engine Models & Specifications

MTU 16V 538 Diesel Engine

MTU 538 Diesel Engine Models & Specifications

Make	Year of construction	Power KW	U/MIN
12V 538 TB92	N/A	2250	1900
20V 538 TB92	N/A	3000	1900
16V 538 TB93	N/A	3300	1900
20V 538 TB93	N/A	4120	1900
12V 538 TB8	MD 656	1655	1800
12V 538 TB9	MD 657	1986	1900
20V 538 TB1	MD 1080	2096	1600
20V 538 TB6	MD 1080	1839	1500
20V 538 TB7	MC 1080/30	2390	1720
16V 538 TB9	MD 872	2648	1900
