| Engine model | QSM11-G2 |
| Engine type | 4 stroke, 6 cylinders in line |
| Displacement | 661 in3 / 10.8 L |
| Rated Power | 292kW (367.9 Kva) @ 1500 rpm |
| Compression Ratio | 16.3:1 |
| Frequency | 50Hz |
| Alternator | Stamford / Marathon |
Cummins G-Drive QSM11-G2 technique specification |
|
|---|---|
| Bore*stroke | 125 mm * 147 mm / 4.92 in * 5.79 in |
| Aspiration | Turbocharged & Aftercooled |
| Fuel system | PT-STC |
| Center of Gravity from Front Face of Block | 450 mm |
| Center of Gravity above Crankshaft Centerline | 190 mm |
| Installation Drawing | 4915163 |
| Piston Speed (ft/min / m s) | 1448 / 7.4 |
| Idle Speed -r/min | 675 / 750 |
| Minimum Engine Speed -r/min | 500 |
| Closed Throttle Torque at Minimum Engine Speed -N.m | 340 |
| Manufacturer | CCEC Cummins |
Cummins G-Drive QSM11-G2 Trade information |
|
| Warranty time | 1year or 1500h |
| Engine Size(L*W*H): | 1150mm*800mm*1100mm |
| Packing size | 1450mm*1000mm*1400mm |
| Weight net | 973 Kg |
| Weight gross | 1007 Kg |
| Delivary port | Shanghai |
| Marine delivary boat | Masket/zhongyuan |
| Delivary time | 15 working days |
| Trade termes | FOB/CIF/CNF |
| Payement termes | T/T，L/C |
| Mode of transport | Sea transportation or air transportation |

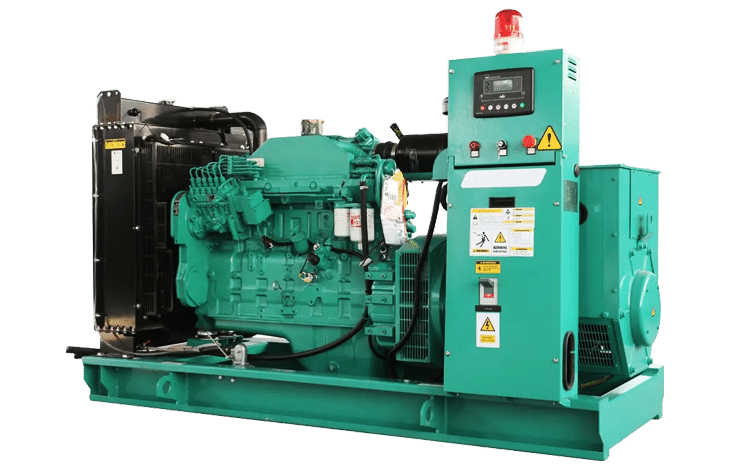

Cummins® heavy-duty engine - Rugged 4-cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.
Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
Permanent magnet generator (PMG) - Offers enhanced motor starting and fault clearing shortcircuit capability.
Control system - The PowerCommand® electronic control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, AmpSentry™ protection, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
Standard cooling package provides reliable running, at the rated power level, at up to 52 °C (126 °F) ambient temperature.
NFPA - The genset accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems.
Electronic control system can intelligently switch the working mode according to the environment and operating conditions, and has the functions of self-diagnosis, alarm and remote monitoring.
