MTU 956/1163 PARTS | 5841421257 | SEALING RING

5841421257 SEALING RING

Other
Other X58799102324/N00 SAFETY VALVE 8492500001 COUPLING X58720700002 COOLANT PUMP SHAFT 5841800143 OIL SPRAY NOZZLE XP58799100596 SEAL 0000911128 DIAPHRAGM X59699100286 PRESSURE SPRING X59699100285 PRESSURE SPRING X54514100028 DIAPHRAGM X58712500010 BLEED VALVE 0005342732 VALVE BLOCK ELECTRIC 5840780024 THRUST MEMBER 5840782802 SUPPLY PIPE 007603016105 COPPER SEALING RING 000910016002 PLUG 000931012156 HEX SCREW 5802040290 RETAINER 000934012008 NUT HEX 000137012202 WASHER SPRING B12 5802040801 SPIRAL HOUSING 000137010202 WASHER SPRING B10 000933010093 HEX SCREW 700429045000 O-RING 5802040072 NUT 0002041116 ROTARY SEAL 5802040806 IMPELLER 700429178000 O-RING 700429100000 O-RING 5842040257 SEAL CARRIER 5842040219 BEARING HOUSING 5849900851 NUT 205412223002 CYL. ROLLER BEARING 5769970119 GRUB SCREW X58720700011 GEAR NO. 11 5900530426 VALVE COLLET 5841400344 FLANGE 5840530229 VALVE GUIDE INLET, SIZE 1 5840530129 VALVE GUIDE INLET, SIZE 0 8495340000 SOLENOID VALVE 5840300615 PISTON SKIRT 8490740063 FLANGE 0020940204 FILTER CARTRIDGE XT5610100140 PISTON RING F/TURBOCHARGER 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420154 CABLE CONDUIT 5841420445 CLAMP X00E50214448 ACTUATOR 5840940180 GASKET 0180944502 PREFILTER 5840371625 PISTON CROWN 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 5849932001 LEAF SPRING 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5841420857 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 5841421257
ENGINE TYPE MTU 956/1163 ENGINE
DESCRIPTION SEALING RING
DIMENSIONS N/A
UNIT WEIGHT 0.119 KG
HS CODE 73269098
NATO-VERS.-NR. 5330123350075
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

MTU 956/1163 EXHAUST PARTS 5841421257 SEALING RING

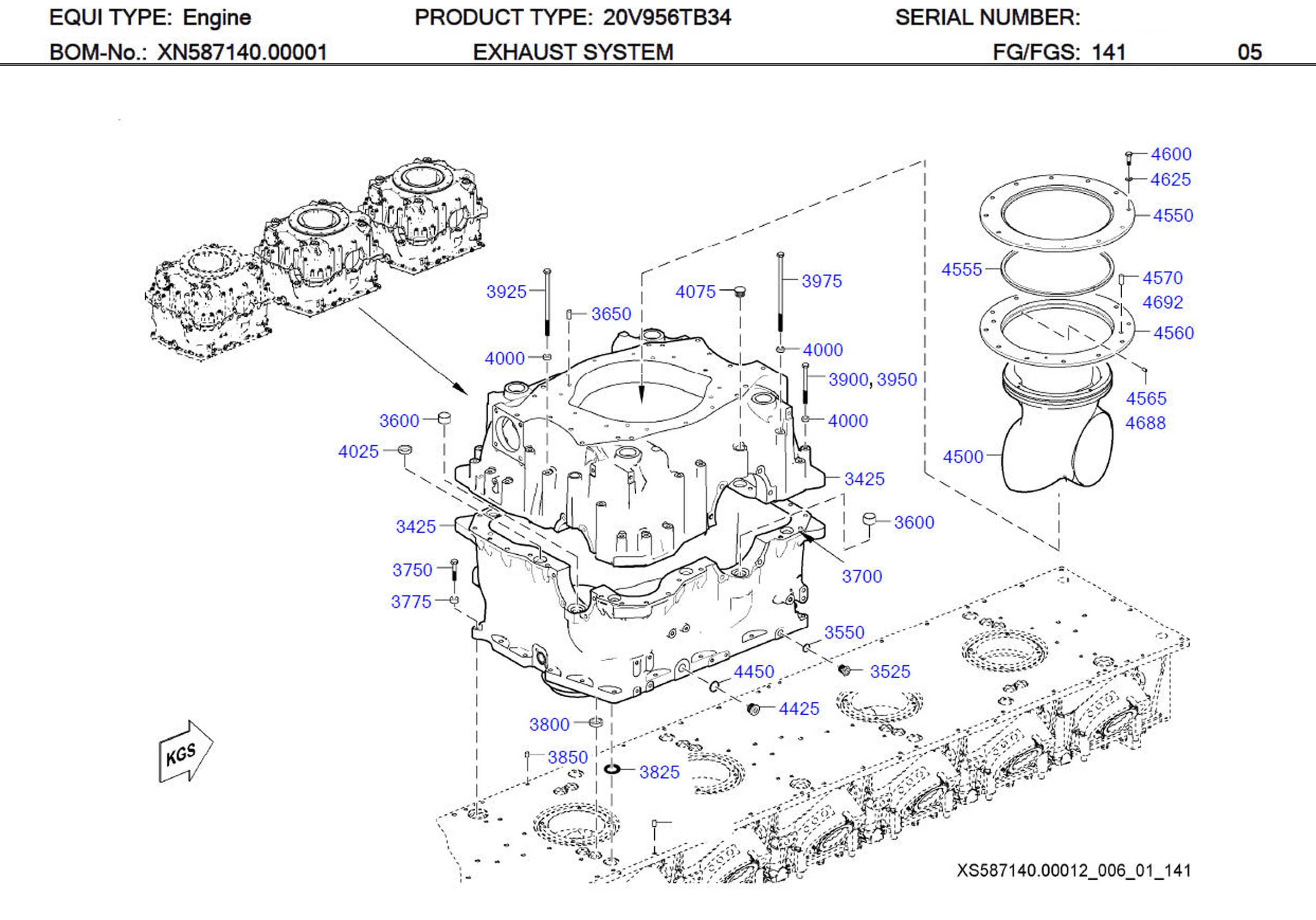

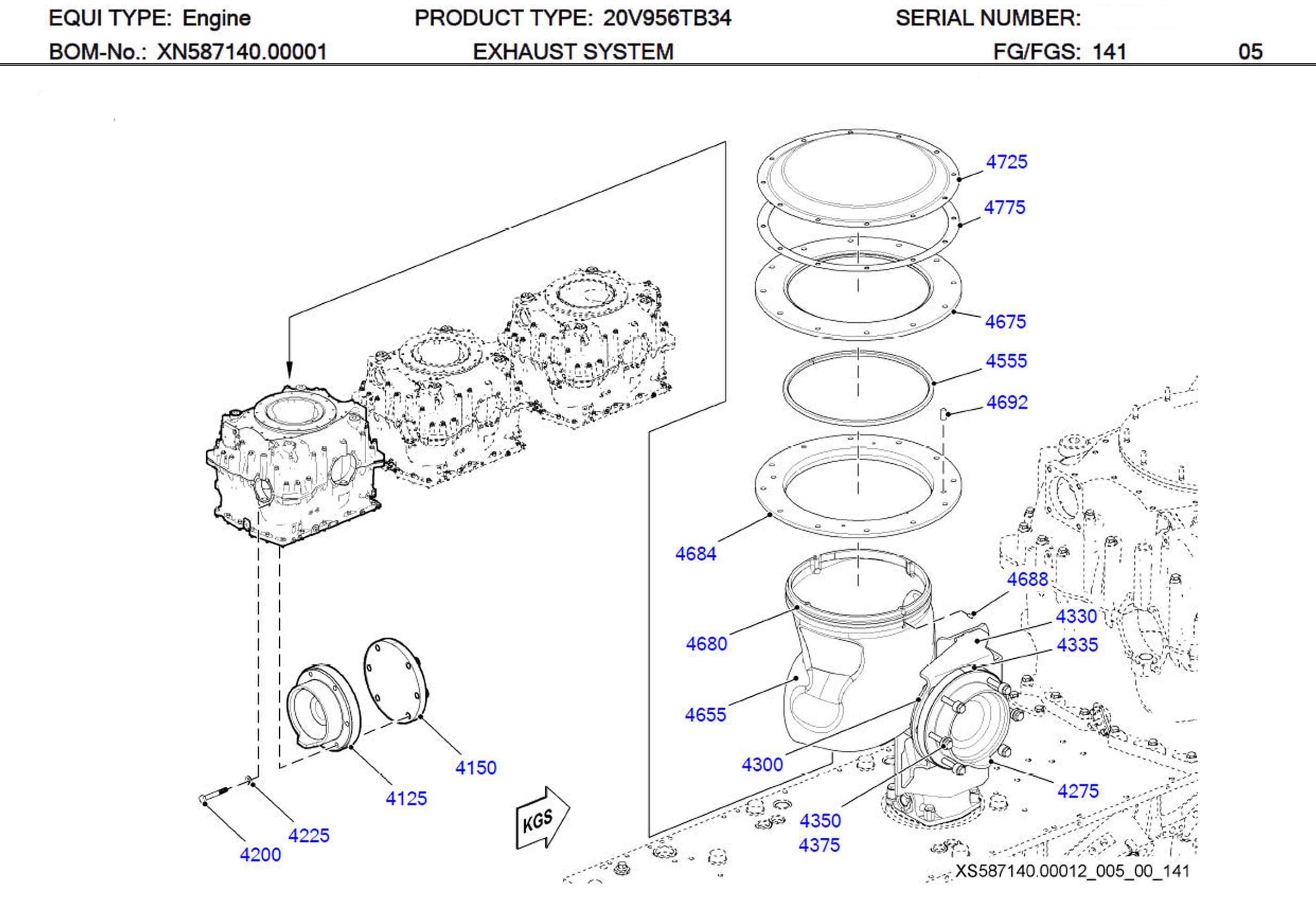

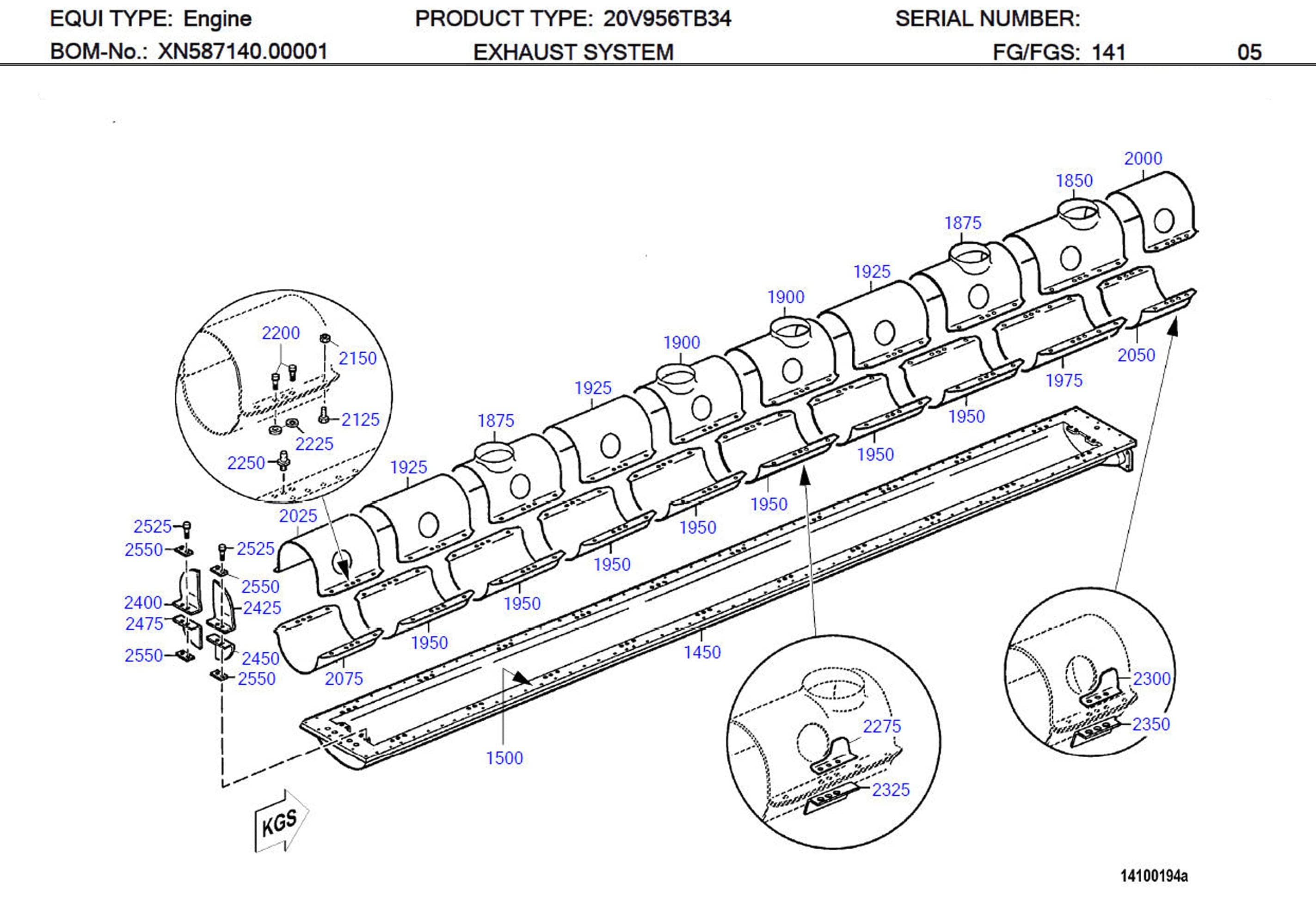

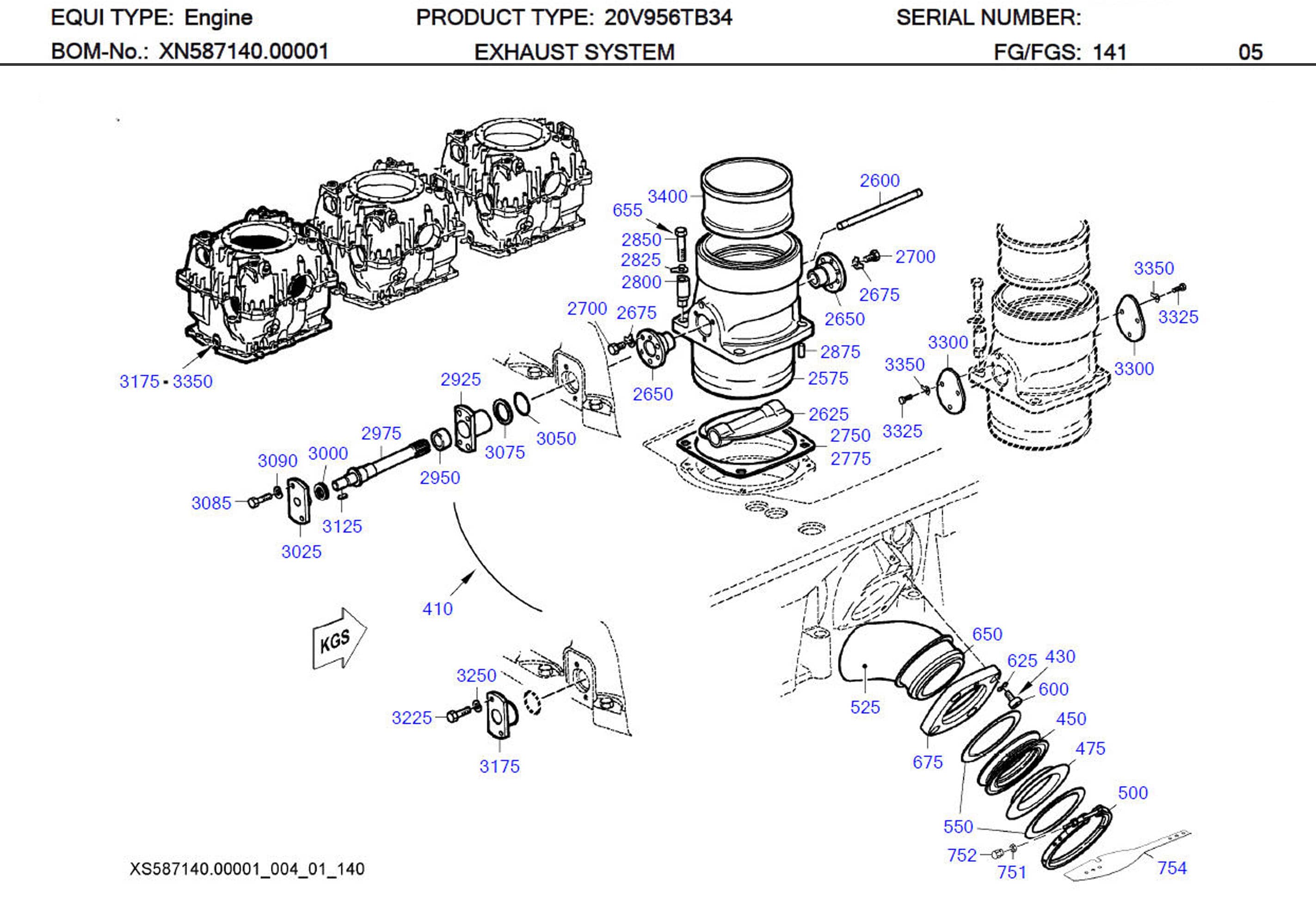

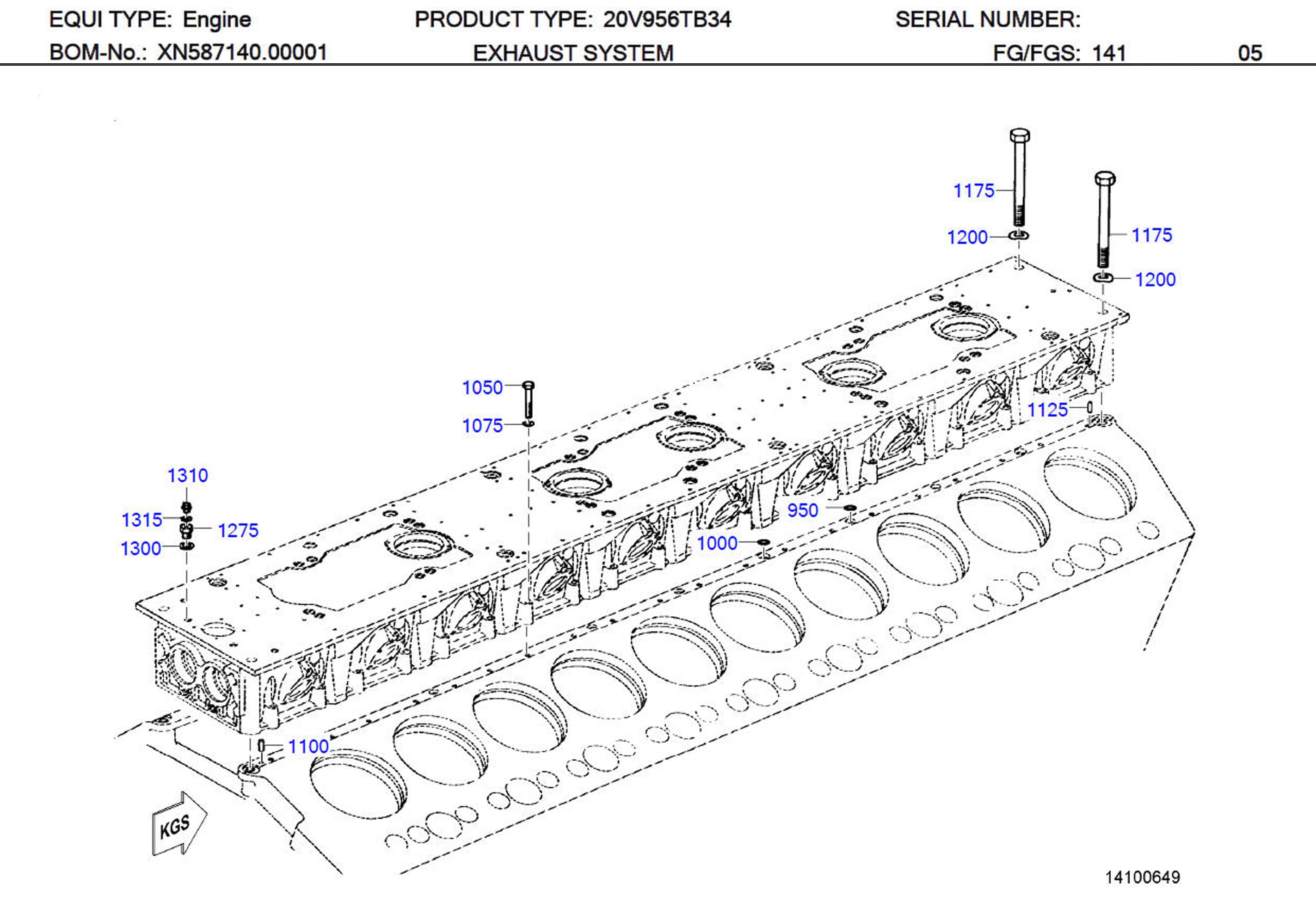

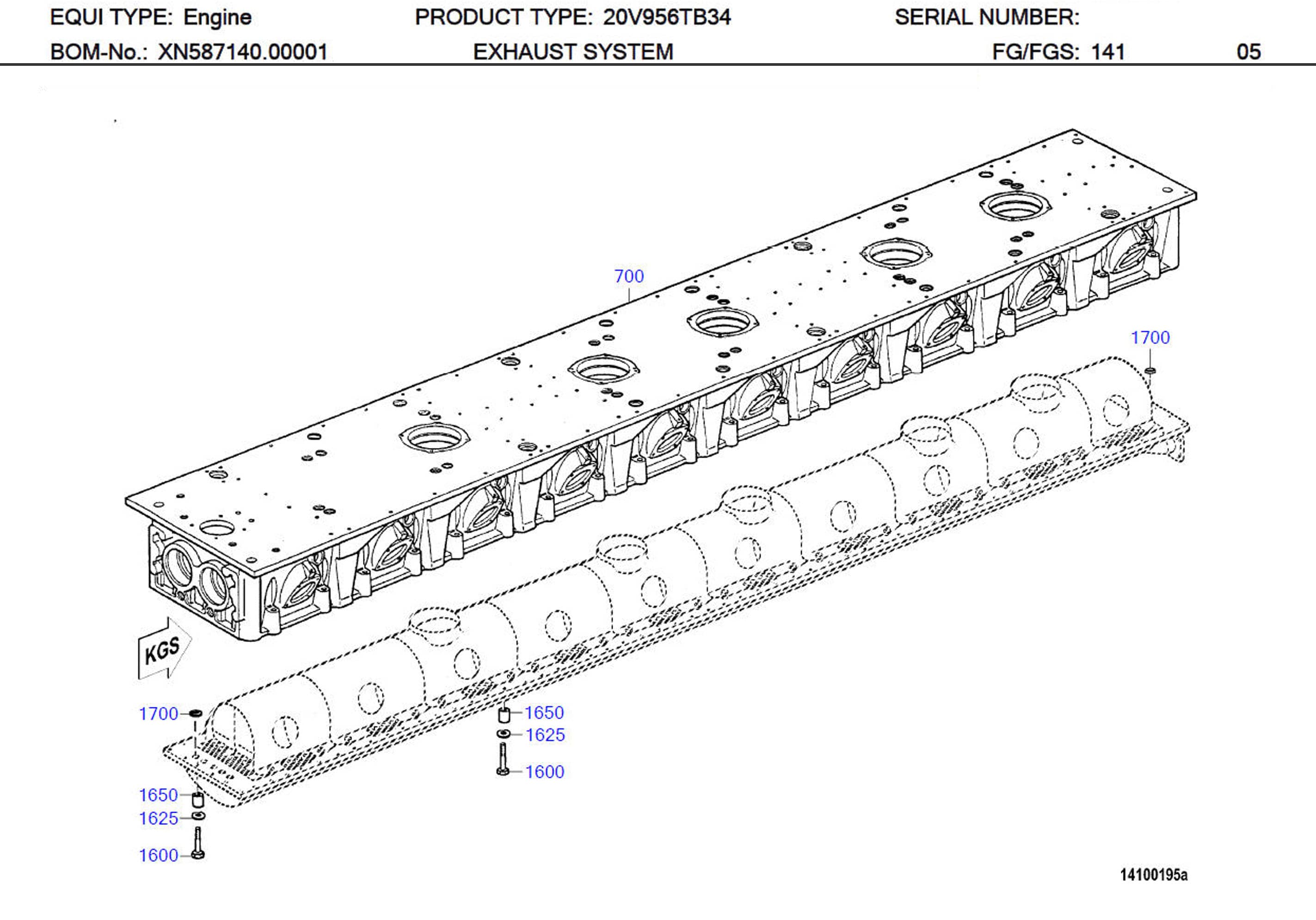

MTU 5841422609 Technical Engineering Exploded View MTU 5841404818 Technical Engineering Exploded View MTU 304014016005 Technical Engineering Exploded View MTU 5841421257 Technical Engineering Exploded View MTU 5841422080 Technical Engineering Exploded View MTU 5841420753 Technical Engineering Exploded View

MTU 956/1163 EXHAUST PARTS 5841421257 SEALING RING

C/N Description Part-Number Qty
410 PASTE ULTRA THERM MTU 50547 001
430 PASTE ULTRA THERM MTU 50547 001
450 BELLOWS WITH TEST CERT. 3.1 5841400282/87 020
475 CABLE CONDUIT 5841420154 020
500 CLAMP 5841420445 020
525 ELBOW 5841400114 020
550 SEALING RING 5841421657 040
600 BOLT HEX SOC HD 000912008115 080
625 WASHER SPRING B8 000137008203 080
650 SEALING RING 0001425757 020
655 PASTE ULTRA THERM MTU 50547 001
675 FLANGE 5841400344 020
700 CONST-PRESS MFLD HSG 5841404818 001
751 HEX NUT 000934006034 020
752 CAP NUT X00029436 020
754 INSULATION AFTER CYLINDER HEAD X58414500002 020
950 O-RING 700429033001 010
1000 O-RING 700429042000 005
1050 HEX SCREW 304014016005 040
1075 WASHER SPRING B16 000137016201 040
1100 PIN DOWEL 000007016104 001
1125 DOWEL PIN 5849910060 001
1175 SCREW 5849900001 002
1200 SPRING WASHER 000137027200 002
1275 THREADED BUSHING 700354018004 004
1300 WASHER A COP 007603027100 004
1310 PLUG 000908018002 004
1315 COPPER SEALING RING 007603018101 004
1450 EXHAUST SHIELD X00003828 001
1500 RTV X00048307 001
1600 HEX SCREW 000933010144 112
1625 WASHER SPRING B10 000137010202 112
1650 SPACER TUBE 5900140253 100
1700 SEALING RING 5800150760 006
1850 CONST-PRESS MANIFOLD 5841422209 001
1875 CONST-PRESS MANIFOLD 5841422309 002
1900 CONST-PRESS MANIFOLD 5841422409 002
1925 CONST-PRESS MANIFOLD 5841422509 003
1950 CONST-PRESS MANIFOLD 5841422609 007
1975 CONST-PRESS MANIFOLD 5841422709 001
2000 CONST-PRESS MANIFOLD 5841420013 001
2025 CONST-PRESS MANIFOLD 5841420113 001
2050 CONST-PRESS MANIFOLD 5841420213 001
2075 CONST-PRESS MANIFOLD 5841420313 001
2125 HEX SCREW 200933010019 042
2150 NUT AH 200934010002 042
2200 SCREW 5849900004 040
2225 WASHER 5879900040 040
2250 LOCATING PIN 5841420075 020
2275 PIPE SUPPORT 5871420242 016
2300 PIPE SUPPORT 5871420342 004
2325 SUPPORT 5871420442 016
2350 SUPPORT 5871420542 004
2400 COVER UPPER PART 5841424891 002
2425 COVER UPPER PART 5841425091 002
2450 COVER LOWER PART 5841424991 002
2475 COVER LOWER PART 5841425191 002
2525 SCREW 5849900004 008
2550 SHIM 5841422784 008
2575 HOUSING 5841404118 005
2600 ROD 5841421874 003
2625 EXHAUST FLAP 5841421424 003
2650 BEARING BUSHING 5841421250 006
2675 TAB WASHER 5841420573 006
2700 HEX SCREW 304017006059 018
2750 SEALING RING 5841421157 005
2775 SEALING RING 5841421257 005
2800 COLLARED BUSHING 5841420650 020
2825 TAB WASHER 5159940015 020
2850 HEX SCREW 200933010010 020
2875 DOWEL PIN 000007010101 010
2925 BEARING FLANGE 5841423015 003
2950 BEARING BUSHING 5841421150 003
2975 SHAFT 5841420129 003
3000 RING SEALING 5591420451 003
3025 SEALING FLANGE 5841423115 003
3035 O-RING 700429033000 003
3075 RING 5900660076 003
3085 HEX SCREW 304017008083 006
3090 WASHER SPRING B8 000137008203 006
3125 WOODRUFF KEY 206885004000 003
3175 COVER 5841425591 003
3225 HEX SCREW 000933008116 006
3250 WASHER SPRING B8 000137008203 006
3300 COVER 5841425291 004
3325 HEX SCREW 304017006059 012
3350 TAB WASHER 5841420573 004
3400 LINK 5841420337 005
3425 CARRIER HOUSING LIQUID-COOLED X58414300003 004
3525 THREAD PLUG 000908012003 006
3550 COPPER SEALING RING 007603012111 006
3600 SLEEVE 5841420753 010
3650 DOWEL PIN 000007012108 012
3700 RTV X00048307 001
3750 HEX SCREW 000931010094 054
3775 SPACER S2000/4000 735151010200 054
3800 SEALING RING 111D03014/1 024
3825 O-RING 700429033001 012
3850 DOWEL PIN 000007010101 006
3900 HEX SCREW 000931010247 040
3925 HEX SCREW 000931010324 012
3950 HEX SCREW 000931010336 002
3975 HEX SCREW 000931010393 024
4000 SPACER S2000/S4000 5599900040 078
4025 SEALING RING 111D03014/1 024
4075 PLUG 5849970086 002
4125 COVER 5841421391 001
4150 COVER 5841401521 001
4200 HEX SCREW 000931010236 006
4225 WASHER 000125010524 006
4275 COVER 5841421291 001
4300 COVER X51499100257 001
4330 CONTAINMENT GUARD F/TURBOCHARGER X51410100012 001
4335 FLANGE X51410100014 002
4350 HEX SCREW 000931012091 006
4375 SPACER 735151012200 006
4425 THREAD PLUG 000908026005 006
4450 COPPER SEALING RING 007603026104 006
4500 EXHAUST Y-PIPE X51414500001 002
4550 INTERMEDIATE MEMBER F. CARRIER HOUSING X51414100003 002
4555 CLAMPING RING X51414500006 002
4560 INTERMEDIATE FLANGE X51414500008 002
4565 PIN SPRING CUZN37 001481006002 002
4570 PIN DOWEL 000007012109 002
4600 HEX SCREW 000933010094 012
4625 WASHER SPRING B10 000137010202 012
4655 EXHAUST Y-PIPE X51414500009 001
4675 INTERMEDIATE MEMBER F. CARRIER HOUSING X51414100003 001
4680 CLAMPING RING X51414500006 001
4684 INTERMEDIATE FLANGE X51414500008 001
4688 PIN SPRING CUZN37 001481006002 001
4692 PIN DOWEL 001481006002 001
4725 COVER PLATE 5841421524 003
4775 GASKET 5841422080 003

5841421257 SUPERSEDED PART AND EFFECTIVE DATE

5841421257 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5841421257 5841420457 N/A
02 5841421257 5841421257 1988/07/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
